Projected-capacitive Rugged Custom Monitor 19" High Brightness 1500nits with dimmer

Name: Projectedcapacitive Rugged Custom Monitor 19quot High Brightness 1500nits with dimmer
Brand: Axnew
Price: 200 USD

Projected-capacitive Rugged Custom Monitor 19" High Brightness 1500nits with dimmer Manufactures

Brand Name : Axnew

Model Number : AXD-19OPN2P2-ID

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 50 Pieces

Price : US$200-400/pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 2500 pieces/month

Delivery Time : 10 working days

Packaging Details : 5 Pcs /Carton with firm foam

Screen Size : 19''

Pixel : 1280x1024

Contrast Ratio : 1000:1

Brightness : 1500nits

Input signal : VGA DVI

Touch Type : Projection capacitive touch

Glass : Anti-glare /anti-reflective treatment

Cover Glass : 3mm/4mm/6mm thickness

Contact Now

Projected-capacitive Rugged 19" High Brightness LCD Monitor 1500nits with dimmer

Display Specifications
Display	19" Color TFT Projected touch Monitor with 6mm anti-vandal glass
Model Name	AXD-19OPN2P2-ID
Active Display Area (mm)	376.3 (H)x301.1(V)
Pixel Pitch (mm)	0.294(H)x0.294(V)
Resolution (Pixel)	SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2)	1500cd/m^2; could be dimmable
Contrast Ratio	1000:1
Viewing Angle (CR >=10)	170/160
Power consumption	38.5W typical, normal operation
Touch Screen	Projected-capacitive touch with 3mm;6mm anti-vandal glass
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D(Optional)
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	Steel chassis & Black Color
Dimensions	432.0 x 339.0x49.8 (mm)
Mounting	Edge locking ,fixing holes embedded
Power source	AC 100~240V/ 12V DC-4A
Environment Specifications
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Rating	Facilitate installation of the demolition, solid portfolio

19 inch industrial monitor could be customized the protective glass, anti-vandal glass, AG AR treatment touch panel solutions, IP65 water-proof front bezel, or signal inputs .

Welcome to contact us if you are interested in it .

Projected-capacitive Rugged Custom Monitor 19" High Brightness 1500nits with dimmer

Product Tags:

open frame tft display

ultra thin touch screen monitor

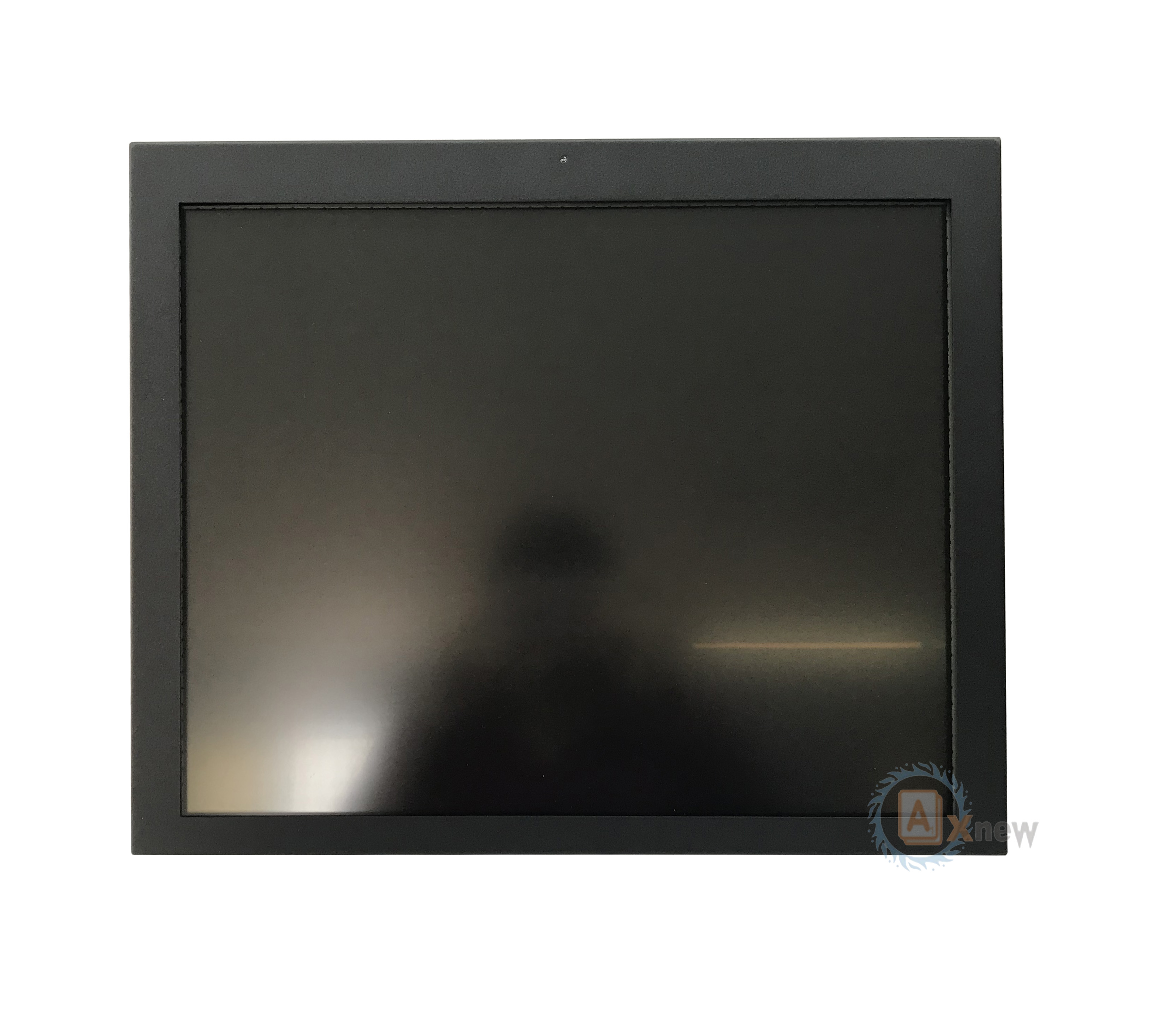

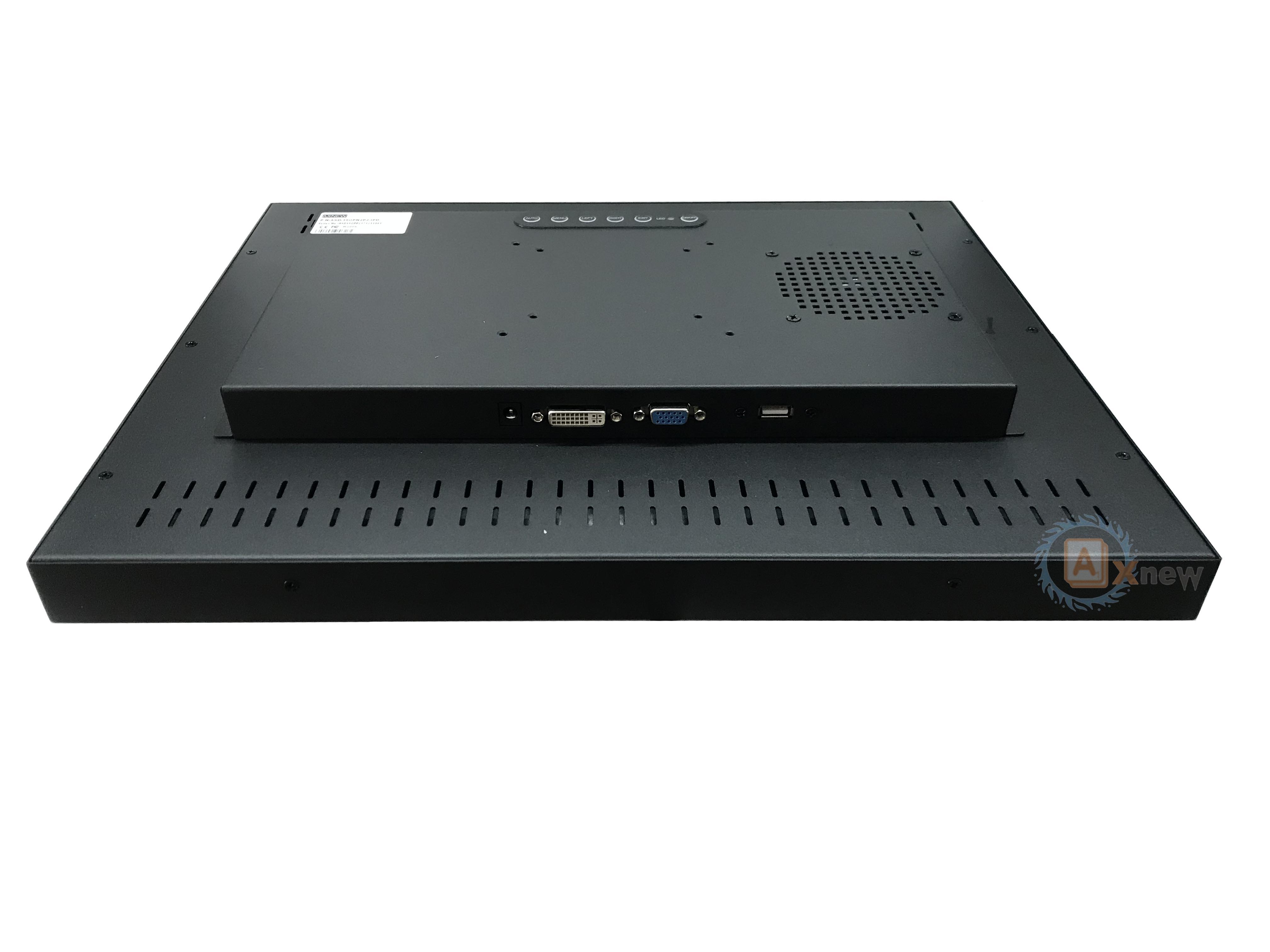

Projected-capacitive Rugged Custom Monitor 19" High Brightness 1500nits with dimmer Images
