5 Wire Resistive Touch Open Frame Monitor With Industrial VGA DVI Inputs

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

5 Wire Resistive Touch Open Frame Monitor With Industrial VGA DVI Inputs

Brand Name : AXNEW

Model Number : AXD-19OPAXMD-T1

Certification : CE.FCC.ROHS,CCC

Place of Origin : China

MOQ : 10 pieces

Price : negotiation

Payment Terms : Western Union, T/T,

Supply Ability : 2500 pcs/month

Delivery Time : 7 working days

Packaging Details : 2pieces/ carton

size : 19 inch

Display Ratio : 5:4

Resolution : 1280 x 1024

Brightness : 350cd/m2

Interface : D-Sub15 Pin(VGA);DVI-D

Viewing Angle : 85/85/80/80

Contrast Ratio : 1000:1

Contact Now

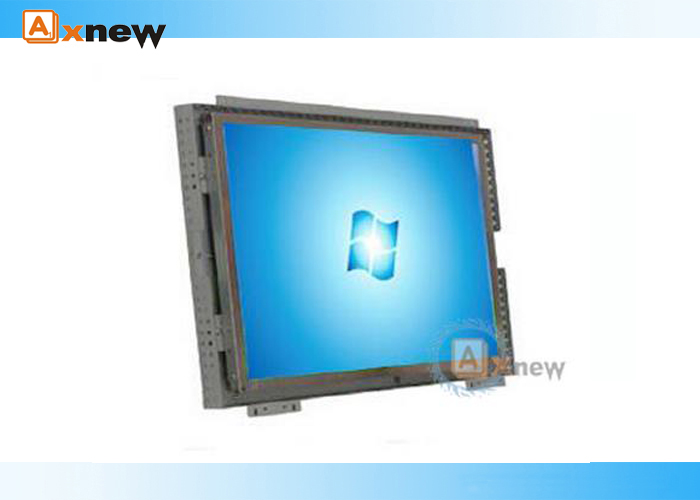

19inch 5 wire resistive touch open frame monitor with industrial VGA DVI inputs

Display Specifications
Display19" Color TFT Industrial Touch screen LCD Monitor
Model NameAXD-19OPAXMD-T1
Active Display Area (mm)376.3 (H)x301.1(V)
Pixel Pitch (mm)0.294(H)x0.294(V)
Resolution (Pixel)SXGA (1280X1024) 16.7 M
Brightness (CD/m^2)350cd/m^2(Typ.)
Contrast Ratio1000:1
Viewing Angle (CR >=10)170/160
Power consumption18.5W typical, normal operation
Touch Screen
Type5 wire resistiveTouch
Surface Hardness3H
Durability50 Million Multi-touch
Transparency89%

I/ORGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only)
OSD6 Keys on the backside
Voltage ConsumptionAC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation

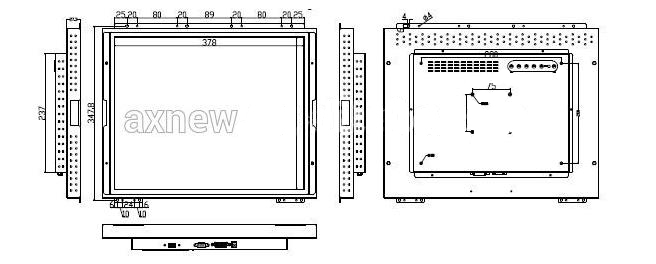

Mechanical Specifications
ConstructionSteel chassis & Black Color
Dimensions429.0 x 347.8x50.0(mm)
MountingEdge locking ,fixing holes embedded
Environment Specifications
Operating Temperature-10~60℃
Storage Temperature-20~70℃
Ordering Information19” open frame 5 wire resisitve touch Monitor AXD-19OPAXMD-T1


5 Wire Resistive Touch Open Frame Monitor With Industrial VGA DVI Inputs
5 Wire Resistive Touch Open Frame Monitor With Industrial VGA DVI Inputs
